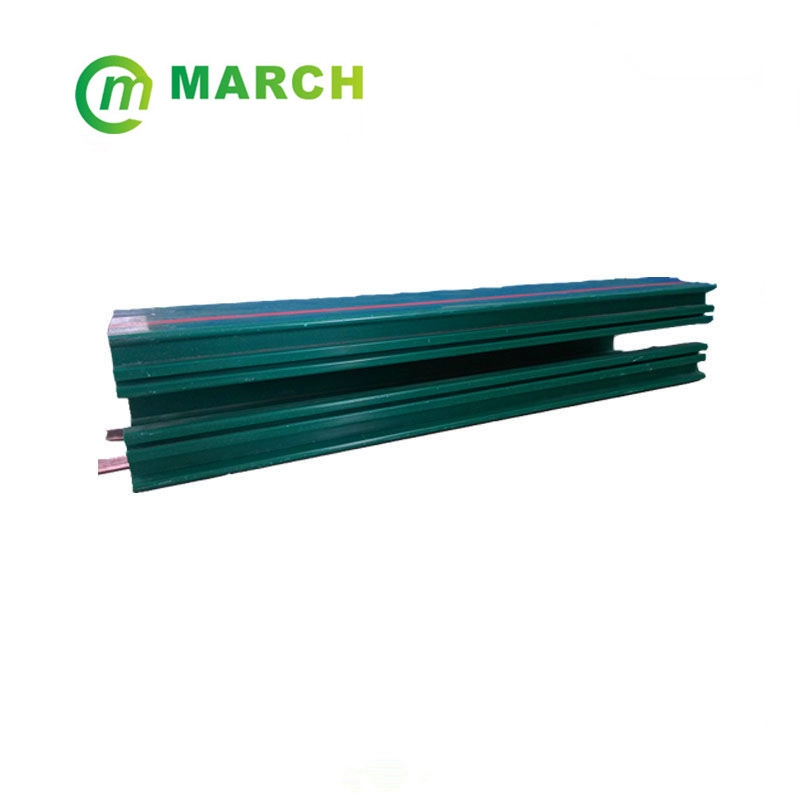

MCCB56 mutipole 3 poles copper Conductor Busbar
型號：MCCB56
認證：
MCCB56 Series Technical data
Type
Poles
Conductor crosssection (mm2)
MAX Current (A)
MAX Voltage(V)
Weight (kg)
MCCB56-3-10/50
3
10
50
600
1.95
MCCB56-3-15/80
15
80
2.13
MCCB56-3-20/100
20
100
2.24
MCCB56-3-25/120
25
120
2.37
MCCB56-3-35/140
35
140
2.63
MCCB56-3-50/170
50
170
3.02
Ptotection Class: IP43
Standard Legnth: 4m
Min.R=0.8M
Support Spacing:For straight runs 1.2m
